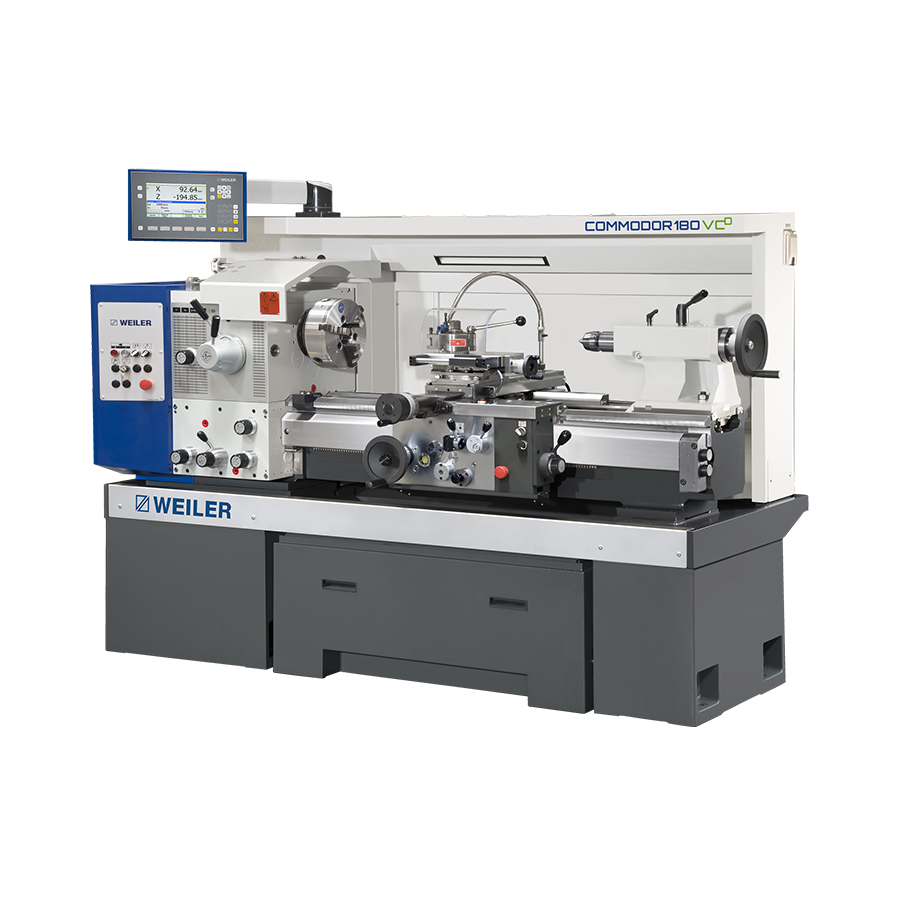

Commodor 180 VCD
The Commodor range has set the standard for long-term precision for decades.
These proven, high quality and powerful production lathes have been conceived for a wide variety of applications in industry, tool making, craft workshops and training.
- Distance between centres 1000 mm
- Centre height 180 mm
- Automatic handwheel release
- Lead screw and feed rod cover
- Holding brake
- Toolmakers accuracy in accordance with DIN 8605
- Frequency converter and speed potentiometer for stepless speed control
- Digital speed indicator
- Easy operation
- Digital readout with constant cutting speed (option)
- LED machine lights
| WORKING RANGE | |
| Centre height | 180 mm |
| Swing over bed | 380 mm |
| Swing over cross slide | 180 mm |
| Distance between centres | 1.000 mm |
| LATHE SPINDLE | |
| Spindle nose acc. to DIN 55027 (DIN ISO 702-3) | size 6 |
| Spindle bore | 56 mm |
| Spindle diameter in front bearing | 90 mm |
| MAIN DRIVE | |
| Drive power 60% / 100% duty cycle | – / 7,5 kW |
| Speed range | 25 – 2.000 rpm |
| Number of speeds | stepless |
| FEED RANGE | |
| Number of feeds | 200 |
| Longitudinal | 0,026 – 0,9 mm/turn |
| Transverse | 0,013 – 0,45 mm/turn |
| THREAD CUTTING RANGE | |
| Metric threads | 0,3 – 10 mm |
| TAILSTOCK | |
| Quill diameter | 60 |
| Quill travel | 150 mm |
| Quill taper according to DIN 228 | MK 4 |
| Acceptance Accuracy | DIN 8605 |
WEILER DZ-V Digital Readout for Commodor AC machines with constant cutting speed (V-constant)
- 3-axis display for bed, cross and top slides
- Direct speed input and readout
- Constant cutting speed
- Freely selectable speed limit (lockable via key switch)
- Oriented spindle stop
- Tool technology memory for 99 tools
- Power display in percent (graphical) and kW
- Switching off the axis displays using a key switch (for training purposes)
- Tool systems
- Three and four jaw chucks
- Face plates
- Collet devices
- Hollow spindle stops
- Follower rests
- Fixed steady rests
- Moving chip and splash guards
- Digital readouts
etc.
