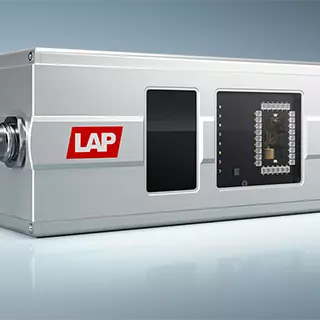

CAD-PRO Xpert laser projector

Industrial laser projector with a powerful technology platform

The CAD-PRO Xpert laser projector is built on a powerful technology platform and offers innovative laser engineering and cutting-edge network capabilities in an unparalleled compact design. Enjoy more colors, speed, and precision while increasing the accuracy, efficiency, and reliability of your production processes. Thanks to the advanced ergonomics of the laser system, production employees benefit from modern workspaces in composite manufacturing, wind rotor blades production, yacht building, woodworking, precast concrete parts production, and many more industries.

Benefits

Increase efficiency

Modernize your work processes thanks to improved work ergonomics and laser projections of remarkable quality.

Avoid downtime

Experience peace of mind with the CAD-PRO Xpert advanced laser system with an individually selectable redundancy function.

See things differently

Benefit from the optional boost function and a new level of displaying information on your production lines' workpieces.

Features

Laser redundancy

CAD-PRO Xpert can be configured with a second laser source. A second laser diode in the same color provides optional redundancy, eliminating the risk of downtime due to replacing laser diodes and, thus, reducing costly repair and shipping.

Multi-color projections

CAD-PRO Xpert can project CAD data in up to six colors: red, green, blue, yellow, cyan, and magenta. In this way, you optimize work ergonomics and increase process reliability.

Homogeneous line quality

Experience laser projections of unparalleled quality. The CAD-PRO Xpert impresses with remarkably homogeneous line quality in all projection directions and an even brightness distribution over the entire projection surface.

Boost function

The optional boost function allows you to increase the intensity of laser lines, making it easier to see projections on workpieces, especially over long distances. Brilliant laser projections can be achieved even in challenging ambient conditions.

Network capability

The wired Ethernet interface ensures fast, reliable data transmission following high security standards. You benefit from fast projection changes thanks to Gigabit Ethernet and easy integration into your network via LAN cable.

Industrial housing

The industrial enclosure with a high IP rating ensures operation in demanding environments. The integrated cooling unit allows use in ambient conditions even up to +50 degrees Celsius. At the same time, the device is lightweight and compact in design, making it easy to install.

Configurations – CAD-PRO Xpert

Laser Color and Wavelength	Max. Output Power of Laser Source	Max. Power Output per Laser Source	Laser Class
Red (Diode, 638 nm)	120 mW	30 mW (Boost up to 60 mW)	2 or 3B
Green (Diode, 520 nm)	100 mW	30 mW (Boost up to 60 mW)	2 or 3B
Blue (Diode, 450 nm)	100 mW	30 mW (Boost up to 60 mW)	2 or 3B

Technical Data – CAD-PRO Xpert

Parameter	Specification
Dimensions [L × W × H]	340 × 110 × 110 mm
Weight	4 kg
Power Supply	48 V DC, 3.5 A nominal
Repeatability/*	±0.025 mm/m
Line Width*	0.5 mm FWHM
Precision	±0.1 mm/m (S – Standard) or ±0.05 mm/m (HP – High Precision)
Projection Angle	60–80° (adjustable)
Ambient Conditions	5–50 °C, 35–85% relative humidity, non-condensing
International Protection Rating	IP65
Interfaces	Wired Ethernet interface; Gigabit LAN; Data security according to TLS 1.2

* Within ±30° projection area at a distance of up to 4 m, beam strikes surface vertically, unit correctly focused and calibrated, minimum 30 min warm-up time.
** Millimetres per meter distance from projector to surface.

APPLICATION AREA

AEROSPACE INDUSTRY

Laser projection systems for alignment and positioning during production of aircrafts, helicopters and space vehicles

WIND POWER INDUSTRY

Laser projection systems for manufacture of fiber-reinforced rotor blades and parts assembly of wind turbine nacelle casings

COMPOSITE INDUSTRY

Laser projection systems for companies specialized on manufacturing composite parts

WOOD INDUSTRY

Positioning lasers and laser projection systems for alignment and positioning for the entire process chain of the woodworking industry

CONCRETE INDUSTRY

Laser projection systems for precise placement of elements on pallets and tables for the precast concrete parts production

LASER PROJECTORS FOR ROTOR BLADE MANUFACTURE

Laser projection systems for the precise alignment and positioning of molded parts and glass fiber plies during manual composite layup in wind rotor blade manufacturing
